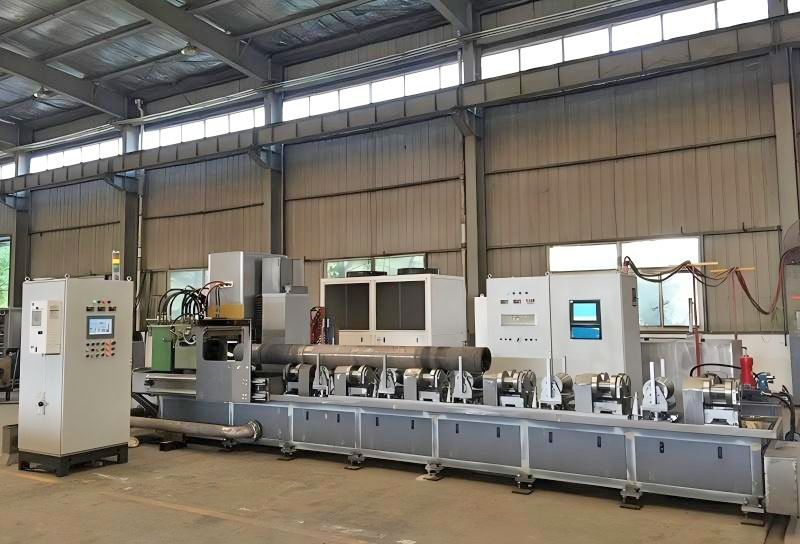

Special Steel Pipe Horizontal Quenching Machine Tool

The machine tool adopts a horizontal bed structure design, tailored to the stress characteristics of special steel pipes (especially long-shaft and large-diameter pipes). Combined with auxiliary support and deformation-limiting mechanisms, it effectively solves industry pain points such as bending and excessive ovality caused by the weight of the steel pipe during traditional quenching processes, ensuring that the straightness and shape accuracy of the quenched steel pipe meet standards.

The bed uses a welded, enclosed steel structure, eliminating the need for internal cooling and quenching water. This fully external design facilitates replacement and maintenance. It is also equipped with a fully enclosed automatic door and an oil fume extraction system, ensuring both operational safety and a clean workshop environment, achieving environmentally friendly production..

The core quenching system adopts a multi-process adaptability design, which can flexibly realize various process combinations such as "external spray + internal spray + rotation" and "external spray + internal spray + rotation + semi-immersion". It can precisely control the quenching parameters for special steel pipes with different materials and wall thicknesses (such as petrochemical pipes, mechanical pipes, and boiler pipes). With the combination of pressurized jet-type external spray nozzles and pressure-holding and shock-absorbing internal spray circuits, it ensures uniform quenching of the inner and outer walls of the steel pipe, significantly improves the hardenability and microstructure uniformity of the steel pipe, strengthens the hardness, wear resistance and corrosion resistance of the steel pipe, and extends the service life of the product.

The quenching water system is equipped with three-stage filtration and intelligent temperature control, automatically adjusting cooling and heating to maintain a stable quenching water temperature. It also enables the recycling and reuse of the quenching fluid, reducing energy consumption and production costs by more than 20% compared to traditional equipment.

Utilizing a PLC or CNC control system with a user-friendly touchscreen, the system is easy to operate and features a clear display. It can preset and store quenching process parameters for various steel pipe specifications; changing products simply requires retrieving the corresponding program, significantly improving production efficiency and ease of operation.

The equipment integrates a process parameter monitoring system, which records and traces the processing information of each steel pipe in real time, including operator information, workpiece parameters, voltage, current, power, flow rate, and temperature. Power tolerance curves are displayed intuitively. It also supports QR code scanning, enabling digital management and traceability of the production process, meeting the quality control needs of large-scale mass production.

The machine tool is equipped with a flexible automatic loading and unloading mechanism, which can be configured with robots or gantry-type loading and unloading systems according to production needs. This enables fully automated operation of the entire process of steel pipe feeding, positioning, quenching, and unloading, eliminating the need for manual intervention. This not only minimizes the labor intensity of workers but also increases production efficiency by 3 to 5 times compared to traditional vertical quenching machine tools. It can handle special steel pipes with different diameters from φ6mm to φ630mm and lengths from 80mm to several meters, offering a wide range of adaptability. Core parameters such as the number of workstations, clamping length, and rotation diameter can be customized according to specific customer needs to flexibly meet diverse production requirements.
