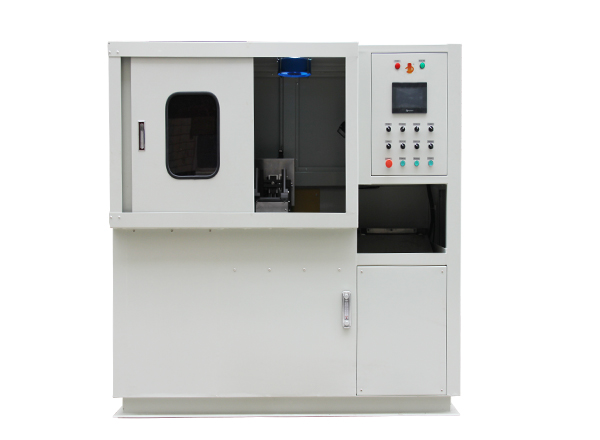

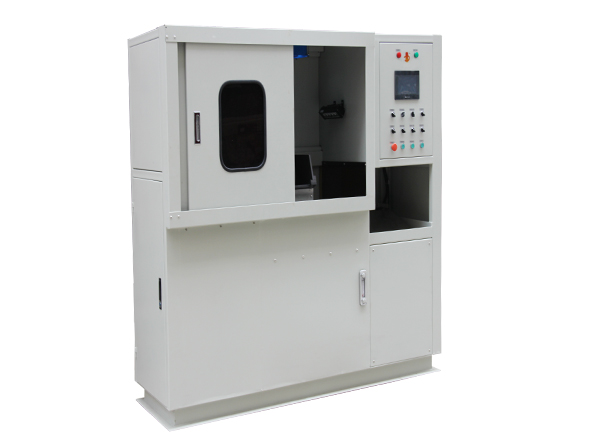

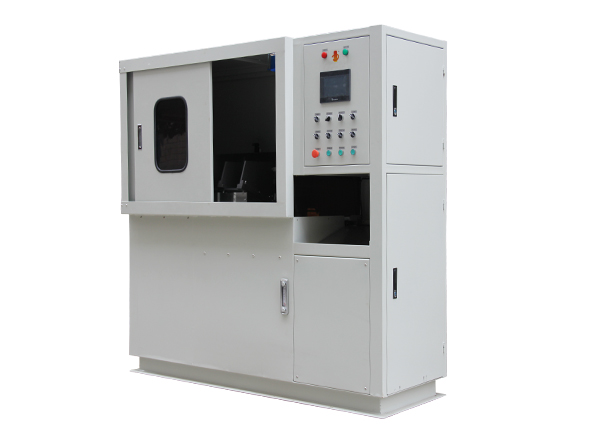

Dual-station Gear Induction Hardening Equipment

Dual-station Gear Induction Hardening Equipment

Dual-station gear induction hardening equipment: This equipment integrates the heating unit, cooling system, control system, and spraying mechanism. Precise PLC control enables multi-stage heating. The equipment allows for adjustment of fixtures and heating processes based on the workpiece, and the setting of heating time, power, and spraying time. Control is available in both manual and automatic modes.

Send Inquiry

Technical parameters of dual-station gear induction hardening equipment

Input voltage	Three phase 380V/50-60Hz
Input current	300A
Output power	200KW
Oscillation frequency	30-50KHZ
Load rate	99%
Cooling water pressure	0.5Mpa
Cooling water flow	≥10L/min

Applications of dual-station gear induction hardening equipment

It is suitable for quenching and tempering of various workpieces, such as shafts, gears, guide rails, discs, pins and other parts.
Vertical (quenching of shaft parts) + Horizontal (quenching of gear ring parts).

Need A One-stop Solution?

Please contact us for details.
